GPS Tracker For OBDII

Country of origin:China

OBDII Tracker, GPS vehicle tracker for OBDII



Dimension 64.5×50×27mm
Weight  60g
Network GSM/GPRS
Operating temperature -20° to 70° C
Humidity 5% to 95% Non-condensing
Frequency GSM850/900/1800/1900Mhz
GPS Sensitivity -165dBm
GPS Frequency L1, 1575.42 MHz
Position Accuracy 5 m, 2D RMS
Storage Temp -20° to 65° C
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 11sec., average
Cold start 30 sec., average
Backup battery chargeable 200mAh  Polymer Li-Battery
Voltage of power 12-24V

Protocol compatibility

The product supports existing OBD protocol:

SAE J1850 PWM                            SAE J1850 VPW

ISO 9141-2                                      ISO 14230-4 (KWP2000_5BPS)

ISO 14230-4 (KWP2000_FAST)     ISO 15765-4 (CAN500_11BIT)

ISO 15765-4 (CAN500_29BIT)       ISO 15765-4 (CAN250_11BIT)

ISO 15765-4 (CAN250_29BIT)


Applies to all vehicles which are compatible with OBDII
US-produced gasoline vehicles are sold after 1996; all Chinese domestic car are sold after 2003;
European gasoline vehicles are sold after 2001 or are produced after 2000;
Diesel vehicles are sold after 2004 or are produced after 2003 .
Support vehicle models:
Mercedes-Benz  BMW Audi   Land Rover
Buick         Chevrolet         Ford           Honda
TOYOTA                  Volkswagen Hyundai   SSANG YONG
Citroen                 Mazda         subaru       Roewe
Peugeot                 Chery         Cadillac   JINBEIHaima
Kia                 BYD                 SKODA      FAW
Nissan                     Geely         JMC           Dongfeng
MITSUBISHI         Porsche Suzuki        Soueast
Isuzu         Acura         Volvo

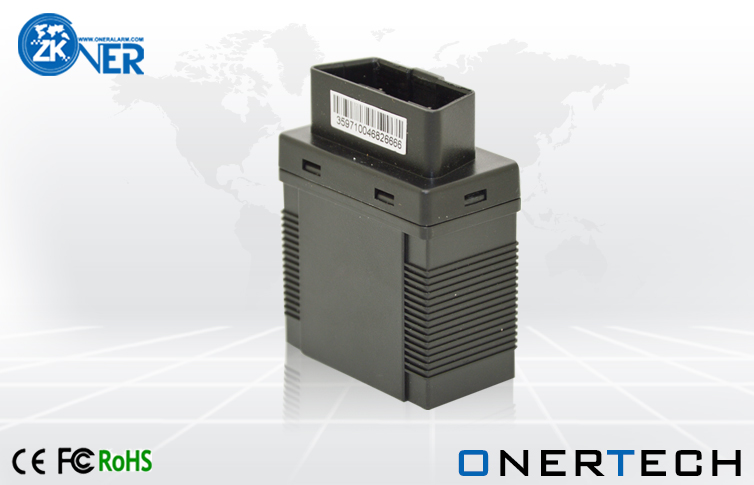

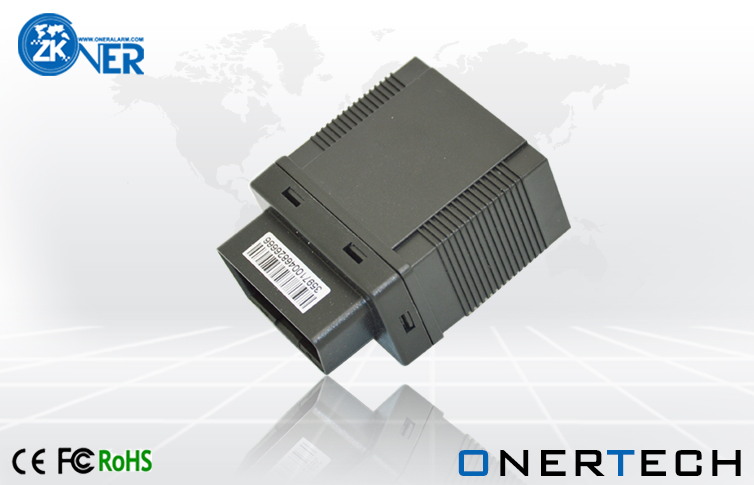

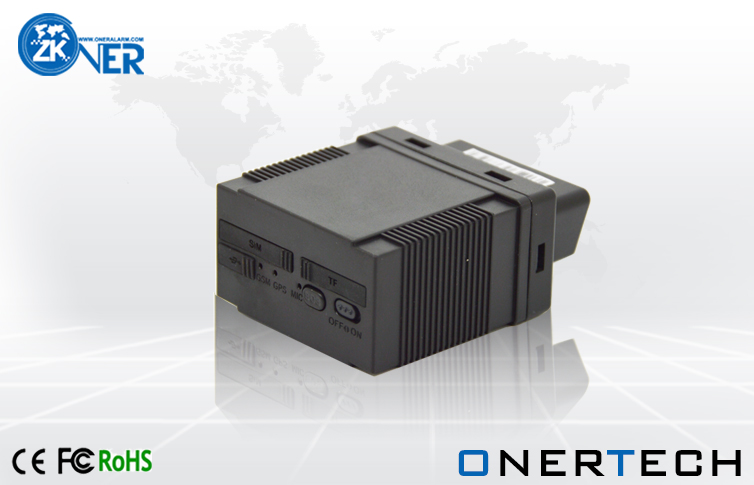

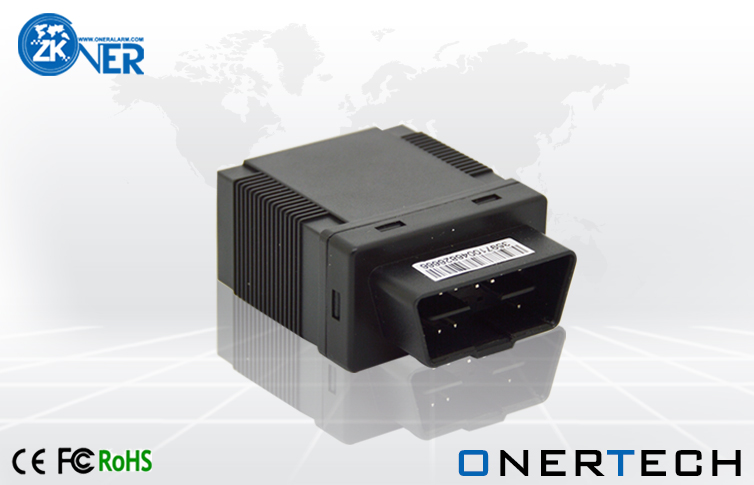

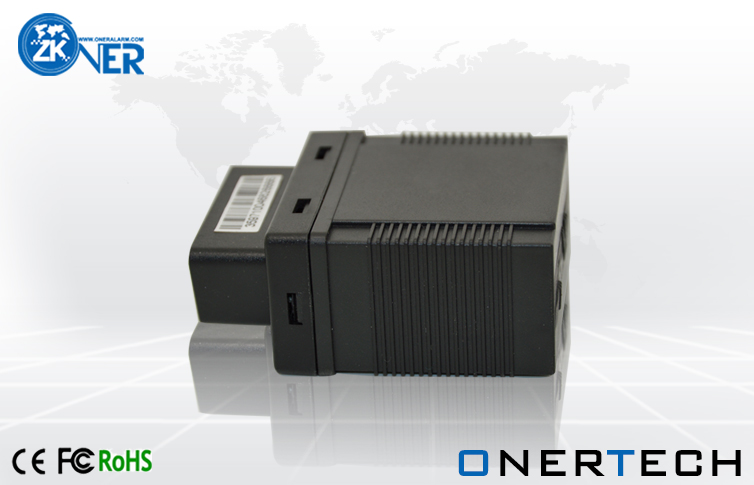

 GPS tracker For OBDII(G10E)

This tracker is a product based on the GSM / GPRS network and GPS satellite positioning system, built-in 2.4G attendance management functions.

Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle by online tracking platform or GPS tracker app remotely,

Support multiple OBDII protocols, and it can work in different vehicles. Easy to install and hide, no wiring harness



1. Ruqest for OBD data by SMS
2. Mileage setting
3. Fuel tank volume setting
4. Notification of vehicle fault
5. Vehicle maintenance notification
6. Tracking via SMS or GPRS (TCP/UDP)
7. Geo-fencing control and alarm
8. Speeding alert
9. Get detail address or Google map link via SMS
10. Low battery alert
11. SOS panic button
12. Voice monitoring
13. Arm/disarm
14. ACC on alert
15. GPS blind spot alert
16. LBS tracking
17. Movement alert
18. Balance inquiry by SMS
