RFID GPS Car Tracker

Price：
Country of origin:

Work with RFID technology, keep car security and management

Product parameters
Function description

Specification:

Power supply	+6V - +24V / 1.5A
Backup Battery	73mm x 86mm x 30mm
Weight	145g
Operating temperature	-20° to 55° C
Humidity	5% to 95% (Non-condensing)
Frequency	GSM 850/900/1800/1900Mhz
GPS Chipset	latest GPS SIRF-Star III chipset
GPS Sensitivity	-158Db
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	10 m, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 m (60,000 feet) max.
Velocity Limit	515 m/second (1000 knots) max.
Interface	2 input and 1 output
LED	2 LED lights to show working status.

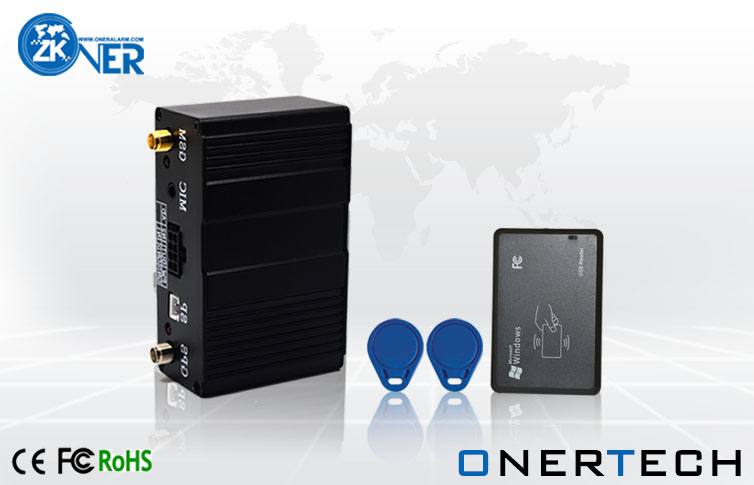

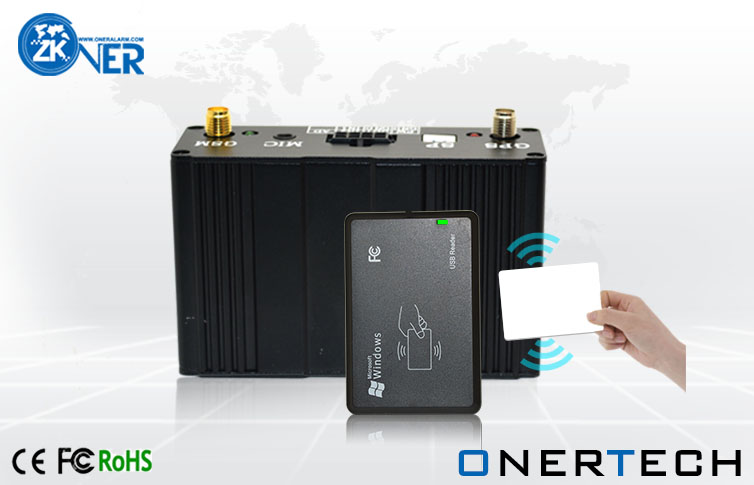

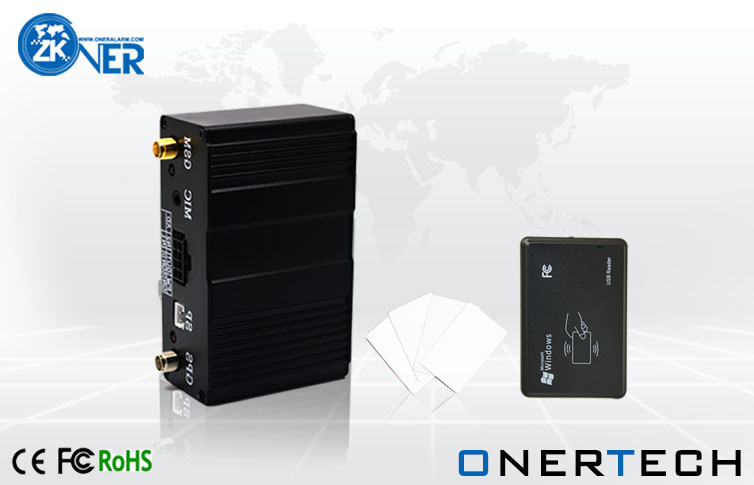

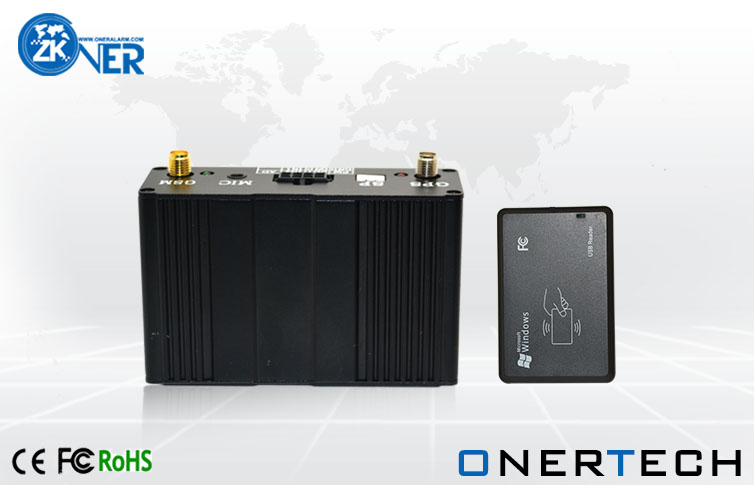

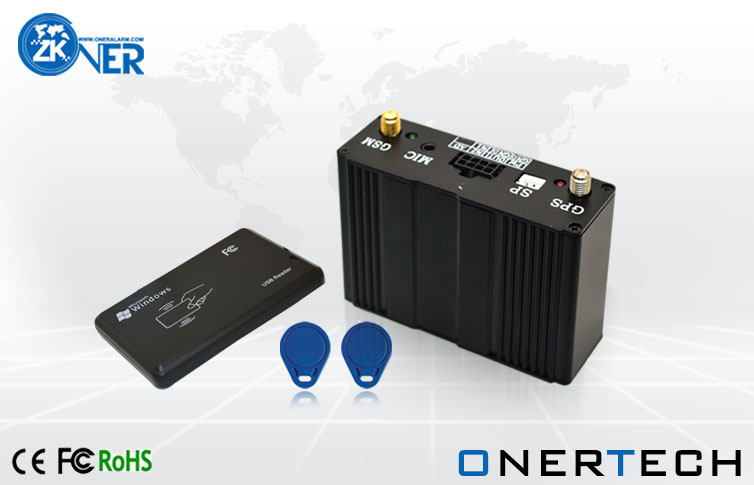

RFID GPS Car Tracker

OCT600-RFID is designed for fleet company specially, except providing the location, direction, speed and history of your vehicles. You can manage all your cars and drivers via RFID to reduce the problems like doing private jobs, low working effective, etc, and the historical and detail reports will help fleet owner to make management plan.

This device is cost-effect and highly recommended to use in fleet management, logistic and car rental service companies.What is more, support multiple tracking applications, it can offer comprehensive service while doing tracking and management.

Core Features:

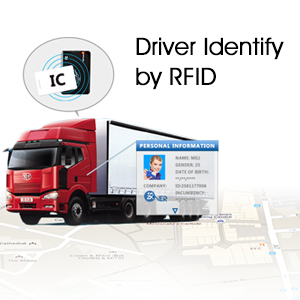

Driver Identify with GPS tracker

Combine GPS tracker with RFID technology to improve driver and fleet management.

Before driving, each driver must do identify, after that, car can start by key, and then driver information will be sent to the tracking system, as well as car location, identify date and time, fleet owner will see who is driving the car and if this driver works on the schedule basis.

Not only that, driving records will be stored in the tracking system, that mean once any event occur, for example, active speeding alert and get the ticket, fleet owner will know the details according to the report.

GPS vehicle scheduling with RFID

CT02-RFID force driver to swipe the RFID tag to register the car before driving, or else, car won’t start even if driver has the key, and after identify, his info will be shown in the system, in this case,:fleet owner will know that if any driver change the shift without allowance;fleet owner will know car situation in real time, there is no chance for driver to do any thing else;Bad driving behaviors can be stopped, the events will be recorded in the system, fleet owner will know who should take responsibility.Drive company car for their own jobs is forbidden, if any one do the private jobs at non working time, device will tell the fleet owner by SMS in time.

this solution will set constraints to driver, and everything can be done on a schedule basis, make vehicle scheduling be real simple, improve working effective.

Main Features:

Real time tracking LBS tracking

Track by interval Detail address inquiry

Google map link inquiry Remote engine cut

SOS emergency alert Geo-fence alert

Over speed alert External power cut alert

Low power alert Power saving mode

Working time setting Mileage calculation & setting

Engine detecting and report SIM card balance inquiry

Voice Monitoring (option)
