3G GPS Tracker OCT630

Country of origin:

3G GPS Tracker, make a new level of GPS tracking


Specification of 3G GPS tracker


  Dimension   60mmx85mmx30mm   Weight   145g
  Charging voltage   +9V - +35V / 1.5A   GPS Chipset   Latest GPS SIRF-Star III chipset
  Back up battery   550mAh lithium-ion battery   Operating temp   -20°C to 55°C
  Humidity   5%–95%   GPS Sensitivity   158Db
  LED indicator   2 indicators show GSM/GPS status   GPS Frequency   L1, 1575.42 MHz
  Channels   20 channel all-in-view tracking   Interface   2 input and 1 output
  Velocity Accuracy   0.1 m/s   Position Accuracy   10 m, 2D RMS
  Frequency   850/1900Mhz,900/2100Mhz UMTS | 850/900/1800/1900Mhz GSM




  GPS 3G tracker   12V/24V relay   Power I/O cable   GPS antenna
  GSM antenna

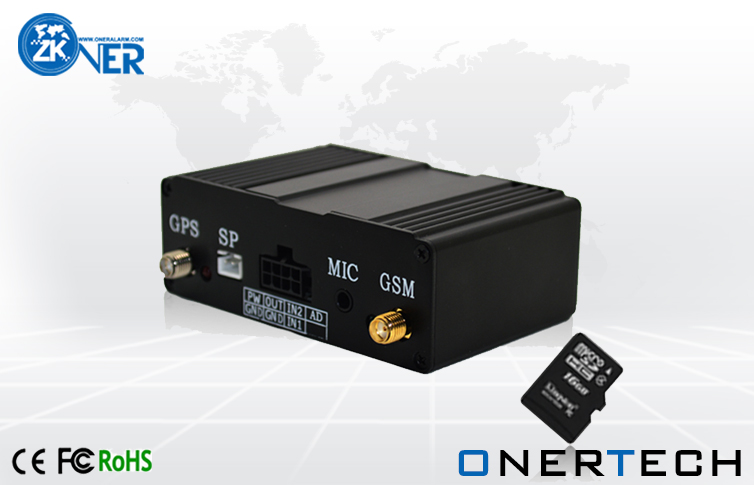

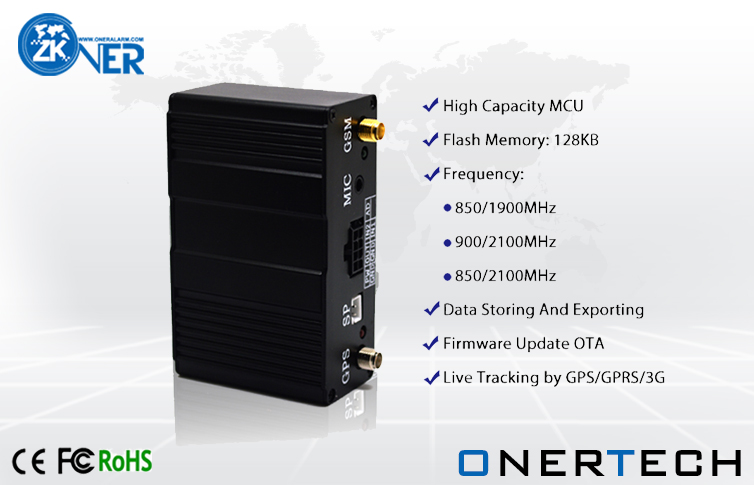

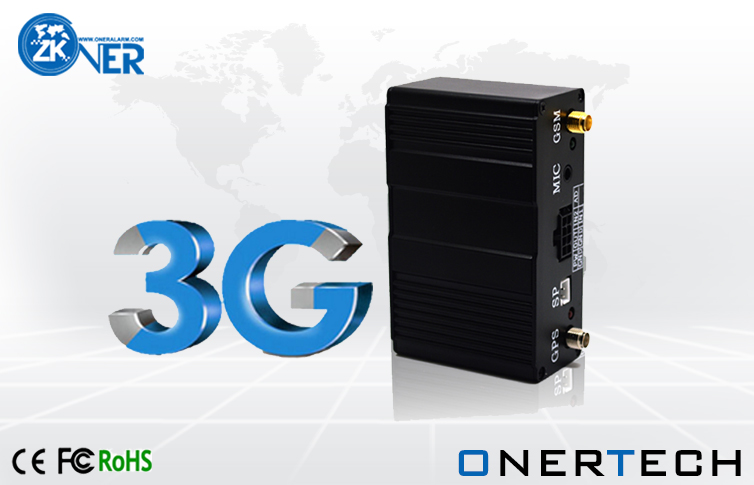

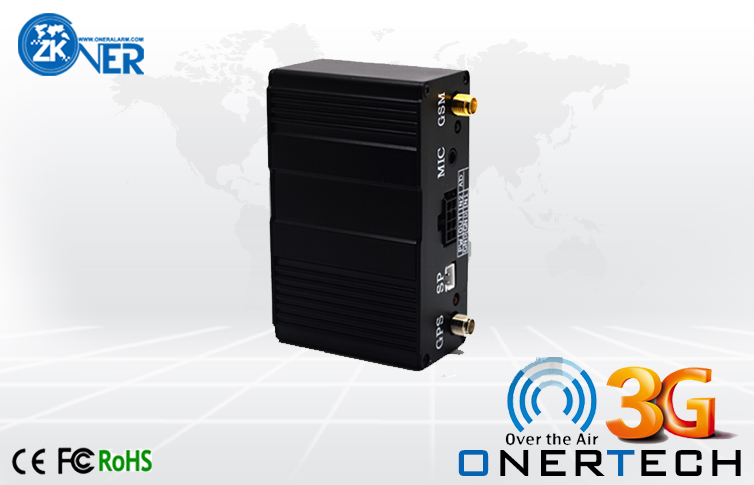

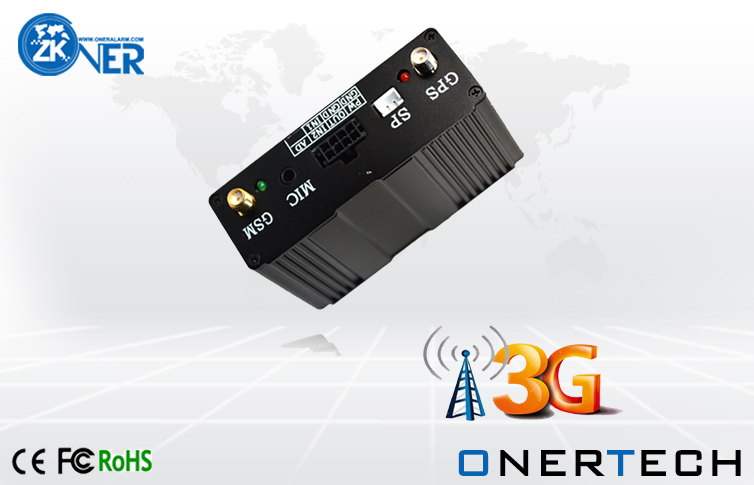

3G GPS Tracker OCT630


3G network with stable reliability, is what brings 3G GPS vehicle tracker OCT630

OCT630 includes more new features and 3G connectivity with different frequency. With stable and fast data transmission capacity, OCT630 make you ability to do tracking in the coverage gaps caused by the
phase out of 2G. Further more, GPS tracker with 3g network support wider range of coverage, it can work well for those in remote, weak signal areas. This 3g tracker is ideal for car tracking, fleet management, access tracking, etc. it allows you to set schedule for all the cars. And multiple alerts like engine on alert, idle alert remind you to pay attention to
car security and maintenance. You also can get reminding when time to do maintenance.

OCT630 has extra accessories added such as camera, fuel sensor, RFID, Bluetooth among others.

1. Tracking via SMS, GPRS, 3G (TCP/UDP)
2. High speed data transmisson
make stable tracking even in the area without stable signal.
3. Support expanded territory coverage, keep tracking for
those in remote area.
4. Support multiple frequency for working in different
countries: 900/2100MHz, 850/1900MHz, 850/2100Mhz
5. LBS tracking
6. Living location report: GPS data sent to server by time interval or distance
7. SOS panic button,emergency alarm.
8. Geo-fencing control and alarm.
9. Movement alarm
10. External power cut alarm
11. Stop car moving/Enable car moving
12. Mileage calculation report
13. GOOGLE MAP link for location via SMS.
14. ACC detecting:ACC detecting on/off status
15. Vehicle/driver Info setting and inquiry
16. Firmware update OTA_Tracker firmware's program can be updated on the air
17. 2 ways communication: Voice monitoring and speaking remotely on the phone (option)
18. Speed limitation
19. Check airtime/balance via SMS
20. Vehicle maintenance
21. Set driver working time via SMS
22. Engine on alarm
23. Data record with SD card(Option)
24. Fuel monitoring (option)
