OCT900

Price：
Country of origin:

GPS tracker with 3 USB ports

Product parameters
Function description

TECHNICAL SPECIFICATION

Dimension	60mmx85mmx30mm	Weight	145g
Charging voltage	+9V – +35V / 1.5A	GPS Chipset	Latest GPS SIRF-Star III chipset
Back up battery	550mAh lithium-ion battery	Operating temp	-20°C to 55°C
Humidity	5%–95%	GPS Sensitivity	158Db
LED indicator	2 indicators show GSM/GPS status	GPS Frequency	L1, 1575.42 MHz
Channels	20 channel all-in-view tracking	Interface	5 input and 5 output, 2 AD, 3 USB port
Velocity Accuracy	0.1 m/s	Position Accuracy	10 m, 2D RMS
Frequency	850/900/1800/1900Mhz GSM	Time Accuracy	1 us synchronized to GPS time

ACCESSORIES

	GPS tracker OCT900-R		12V/24V relay		Power I/O cable		GPS Antenna
	GSM Antenna

Oner GPS tracker OCT900

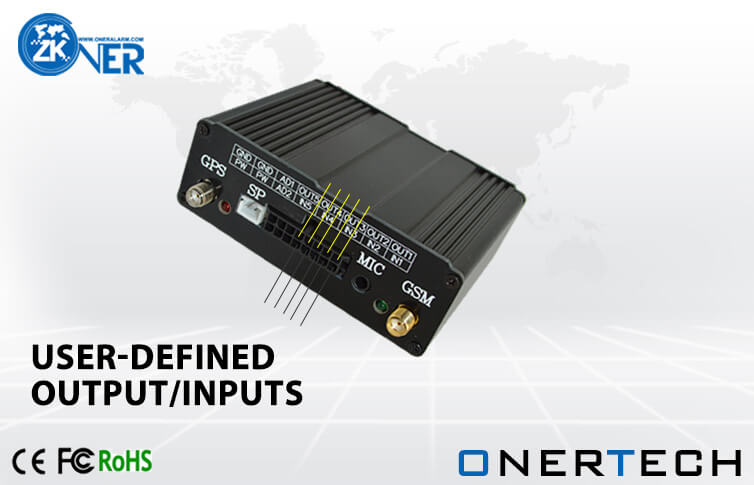

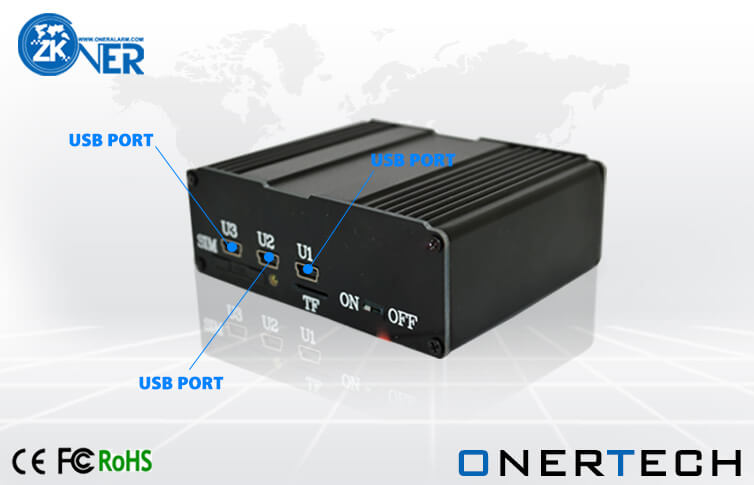

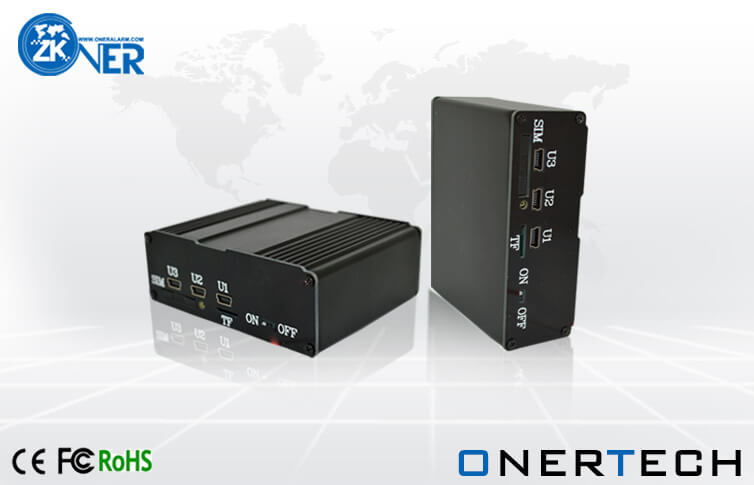

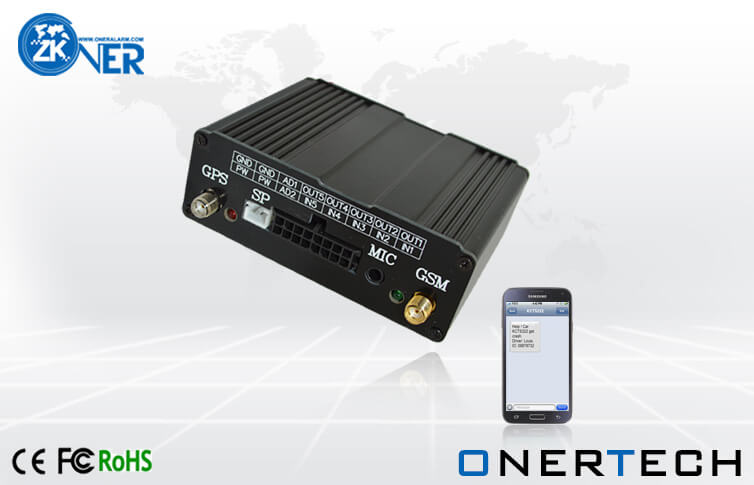

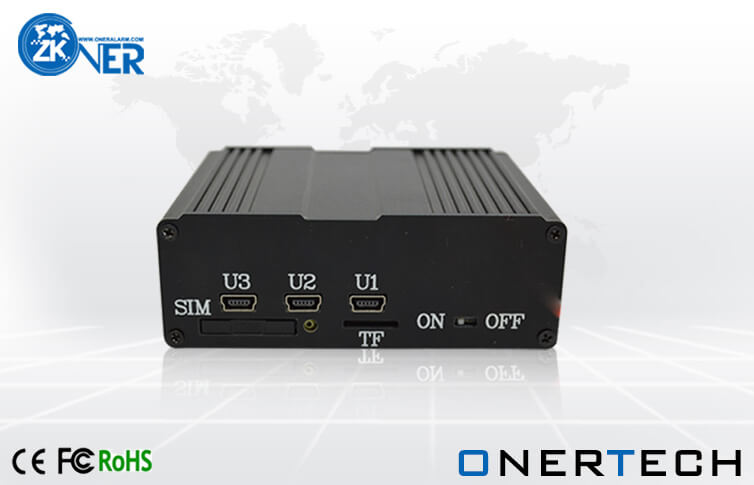

OCT900 is oner GPS Tracker supported 3 USB ports and 5 user-defined I/Os. It allows you ability to make GPS tracking device for different applications. For example, make RIFD and camera work with tracker together, you can monitor driver behaviors and take photo when bad event happen, like reckless driving, not wearing seat-belt, etc. And you also can use 5 undefined outputs to control your car, include engine, car door, trunk, ari container, audio, etc. For car and drive safety, alarm system is necessary, this tracking device allows you to define alert, and you can customize the content of alerts

This tracker is highly recommended to use in fleet and logistic companies, travel service, car rental service, etc.

Features

1. GPS/GPRS live tracking

2. Living location report

3. LBS Tracking

4. Track by time/ distance / degree / engine

5. Google map link inquiry

6. Engine cut remotely

7. SOS emergency alert

8. Geo-fence alert

9. Movement alert

10. Speeding alert

11. External power cut alert

12. Shaking alert

13. GPS antenna abnormal alert

14. 5 output/input user-defined function

15. Alert content user-defined function

16. Vehicle info setting and inquiry

17. Vehicle maintenance reminding

18. Speed limitation

19. Fuel monitoring (option)

20. Working time setting

21. Mileage calculation & setting

22. Miss call reminding for alarm

23. Data logging by time interval (option, SD card)

24. Data download with Udoc kit (option, Udoc kit)

25. SIM balance inquiry

26. Voice monitoring(option,MIC)

27. 2 ways communication (Option)

28. 3 Admin No.s setting for management

29. Driver Identify (option)

30. Car control by RFID (Option)

31. Dual photograph mode ( option)

32. Take photo by time interval (option)

33. Take photo when alarm active (option)
