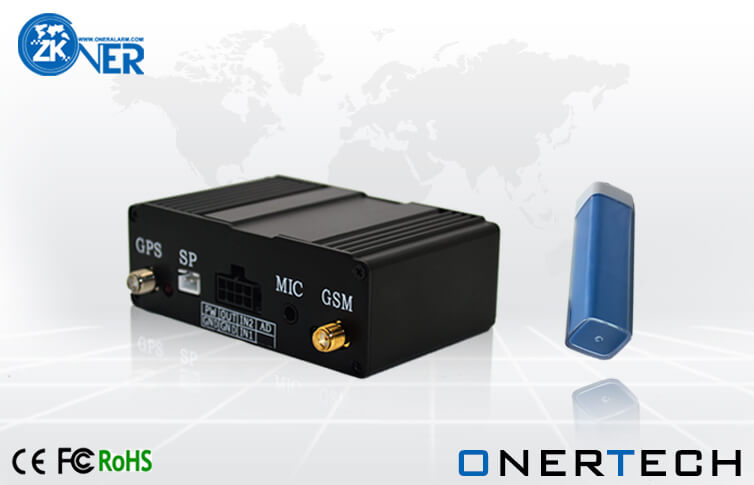

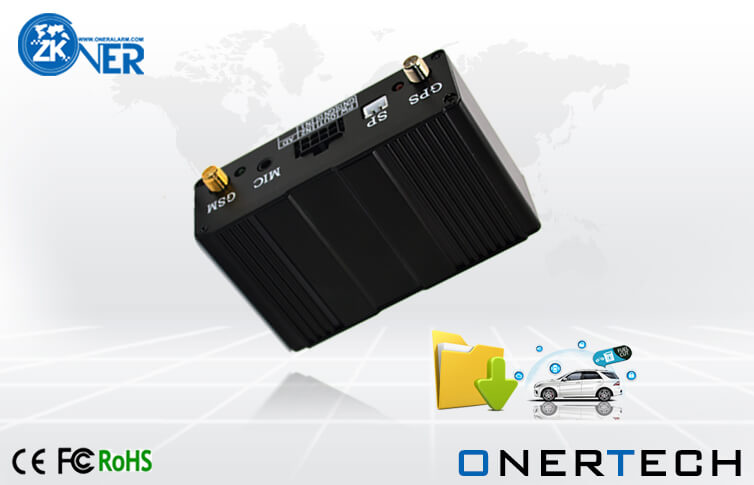

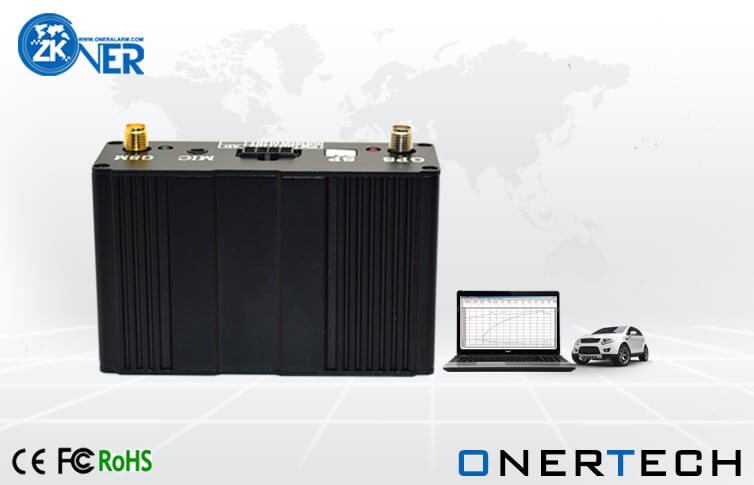

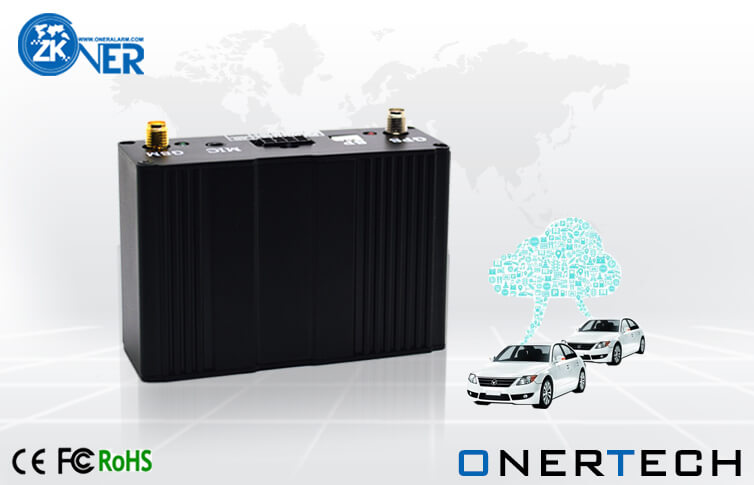

GPS Tracker OCT600-UD

Country of origin:

GPS Tracker with data download





  Dimension   60mmx85mmx30mm   Weight   145g
  Charging voltage   +9V – +35V / 1.5A   GPS Chipset   Latest GPS SIRF-Star III chipset
  Back up battery   550mAh lithium-ion battery   Operating temp   -20°C to 55°C
  Humidity   5%–95%   GPS Sensitivity   158Db
  LED indicator   2 indicators show GSM/GPS status   GPS Frequency   L1, 1575.42 MHz
  Channels   20 channel all-in-view tracking   Interface   2 input and 1 output
  Velocity Accuracy   0.1 m/s   Position Accuracy   10 m, 2D RMS
  Frequency   850/900/1800/1900Mhz GSM   Time Accuracy   1 us synchronized to GPS time





  GPS tracker OCT600   12V/24V relay   Power I/O cable   GPS Antenna

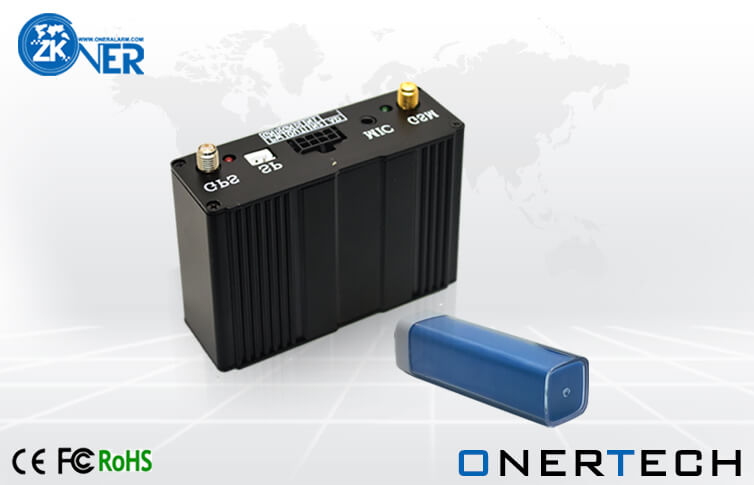

  GSM Antenna    Udoc Kit


GPS Tracker OCT600-UD

OCT600-UD is a tracking device special for fleet company. It is helpful in long distance transportation. Data logging feature can store the data when the car is in the area without GSM network, and upload the server while network is recover.  Server will give you a confirmation after all data transfer complete, to ensure no lost of data. And the key to offer a big help in fleet management is data download feature.You just need to go to the car, connect it with universal USB disk, and start downloading, the whole process just take a few sec. No need to remove tracker from the car.All data correction can be done in  a short, and minimize the amount of time, reduce a lot of paper work.

Main Feature:

  1. Real time tracking   2. LBS Tracking   3. Track by time/distance/degree/engine   4.Google map link inquiry
  5. Engine cut remotely   6. SOS emergency alert   7. Geo-fence alert   8. Movement alert
  9. Speeding alert   10. External power cut alert   11. Track by android APP   12. Shaking alert
  13. Data logging   14. Data download by Udoc kit   15. Speed limitation   16. Vehicle info config and inquiry
  17. Working time setting   18. Engine detecting and alert    19. SIM balance inquiry   20. Fuel monitoring (option)
  21. Mileage calculation & setting   22. Miss call reminding for alarm   23. Voice Monitoring (option)   24. Vehicle maintenance reminding
  25. 3 Admin No.s for management
