GPS WIFI Tracker

Price：
Country of origin:

Oner GPS WIFI Tracker

Product parameters
Function description

TECHNICAL SPECIFICATION

Dimension	60mmx85mmx30mm	Weight	145g
Charging voltage	+9V – +35V / 1.5A	GPS Chipset	Latest GPS SIRF-Star III chipset
Back up battery	550mAh lithium-ion battery	Operating temp	-20°C to 55°C
Humidity	5%–95%	GPS Sensitivity	158Db
LED indicator	2 indicators show GSM/GPS status	GPS Frequency	L1, 1575.42 MHz
Channels	20 channel all-in-view tracking	Interface	5 input and 5 output, 2 AD, 3 USB port
Velocity Accuracy	0.1 m/s	Position Accuracy	10 m, 2D RMS
Frequency	850/900/1800/1900Mhz GSM	Time Accuracy	1 us synchronized to GPS time

STANDARD CONTENT

standard content

	GPS WIFI tracker OCT900-WIFI		12V/24V relay		Power I/O cable		GPS Antenna
	GSM Antenna		WIFI Receiver

Oner GPS WIFI Tracker OCT900-WIFI

OCT900-WIFI is the tracking device with combination of SMS, GPRS and WIFI, it can bring more free service for projects.

Oner GPS WIFI Tracker support big data logging, it can store data when there is no GSM network, and upload big data to server by WIFI. This device also can work with Mobile WIFI routers, it is possible to do the real time tracking with Mobile WIFI routers. You can set multiple WIFI hotspots for fleet management, when the car enter every warehouse and connect with WI-FI hotspots automatically. In other words, this tracker can work even if there is no GSM network, you do not have to buy a new tracker when GSM network upgrade to 3G/4G/5G.etc.

OCT900-WIFI is highly recommended to use in fleet and logistic companies.

Features of GPS WIFI Tracker

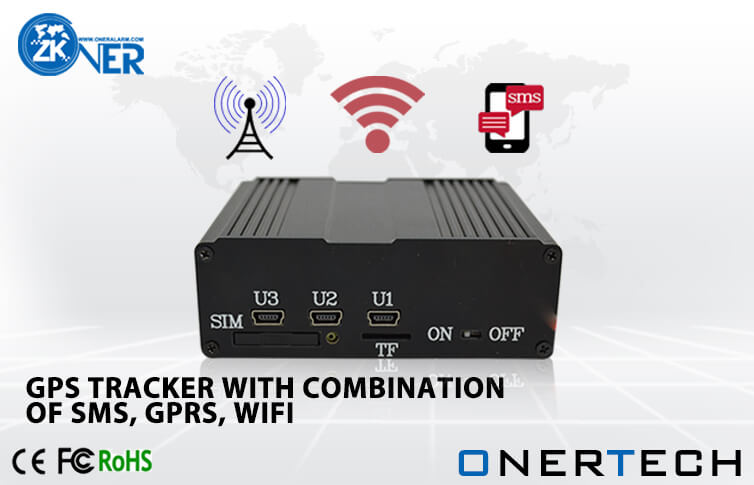

1. GPS tracker with Combination of SMS, GPRS and WIFI

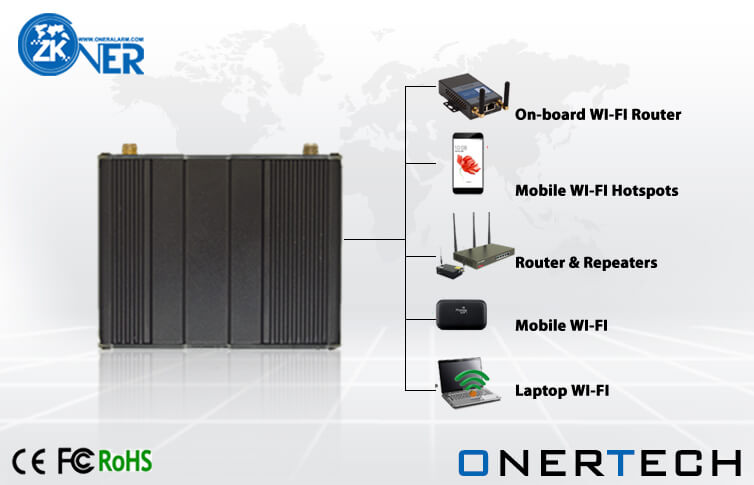

2. WI-FI tracking with multiple WIFI routers or hotspots

3. Firmware Update, device config via WIFI

4. LBS Tracking

5. Track by time / distance / degree / engine

6. Google map link inquiry

7. Engine cut remotely

8. SOS emergency alert

9. Geo-fence alert

10. Movement alert

11. Speeding alert

12. External power cut alert

13. Shaking alert

14. GPS antenna abnormal alert

15. 5 output/input user-defined function

16. Alert content user-defined function

17. Vehicle info setting and inquiry

18. Vehicle maintenance reminding

19. Speed limitation

20. Fuel monitoring (option)

21. Working time setting

22. Mileage calculation & setting

23. Miss call reminding for alarm

24. Big Data logging by WIFI (option, SD card)

25. Data download with Udoc kit (option, Udoc kit)

26. SIM balance inquiry

27. Voice monitoring,3 listening No.s (option,MIC)

28. 2 ways communication (Option, speaker)

29. 3 Admin No.s setting for management

30. Driver Identify (option)

31. Car control by RFID (Option)

32. Dual photograph mode ( MMS & online, option)

33. Take photo by time interval (option)

34. Take photo when alarm active (option)
