Price:RFID Guard Tour System
Country of origin:RFID Guard Patrol System
Specification of RFID guard tour system MODEL No OGT007 Product Type Contact Button Guard Patrol System Color Black Materia
Specification of RFID guard tour system
MODEL No |
OGT007 |
Product Type |
Contact Button Guard Patrol System |
Color |
Black |
Material |
Durable stainless steel case with rubber outer shell |
Reading Mode |
Dallas 1990A ibutton Reading distance contact reading |
Communication |
USB,(CP2102,USB2.0) upload data 7200 pcs per min |
Standby time |
1、Continuous reading could reach 150,000 records. 2、battery could last at least half year by reading 500 buttons each day |
Humidity |
10% to 90% non-condensing |
Operating Temperature |
-40°C to 85°C |
IP Rate |
IP67 |
Button number |
1. 12 bit Hexadecimal 2. Number in TD100 3 byte, 6 bits |
Battery |
Built-in 3.7V lithium battery |
Data Storage |
16Mbit flash, 30,000 pieces |
Dimension |
155XΦ27.5mm |
Weight |
230g |

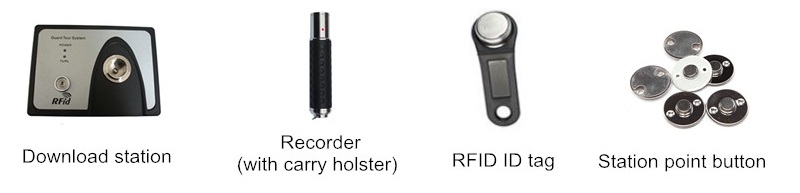

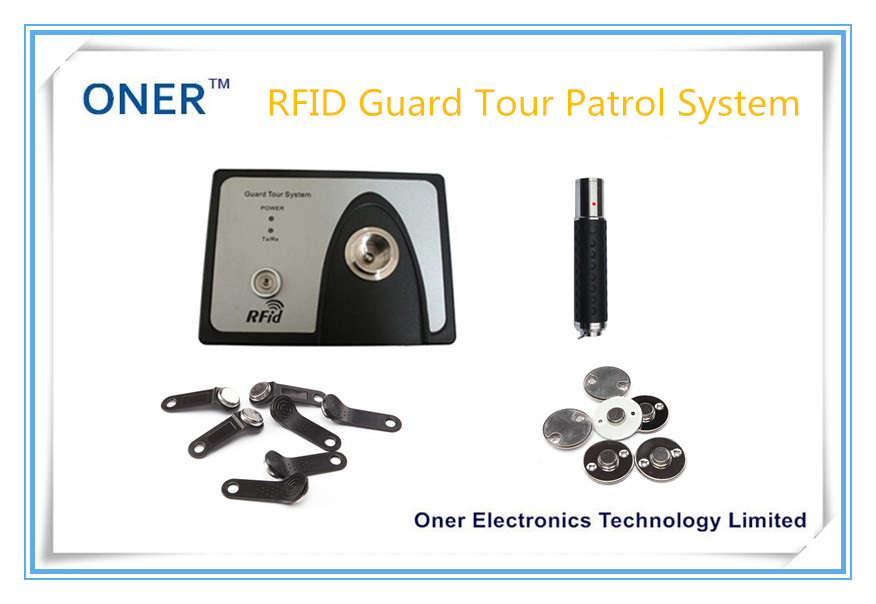

The content of Standard package

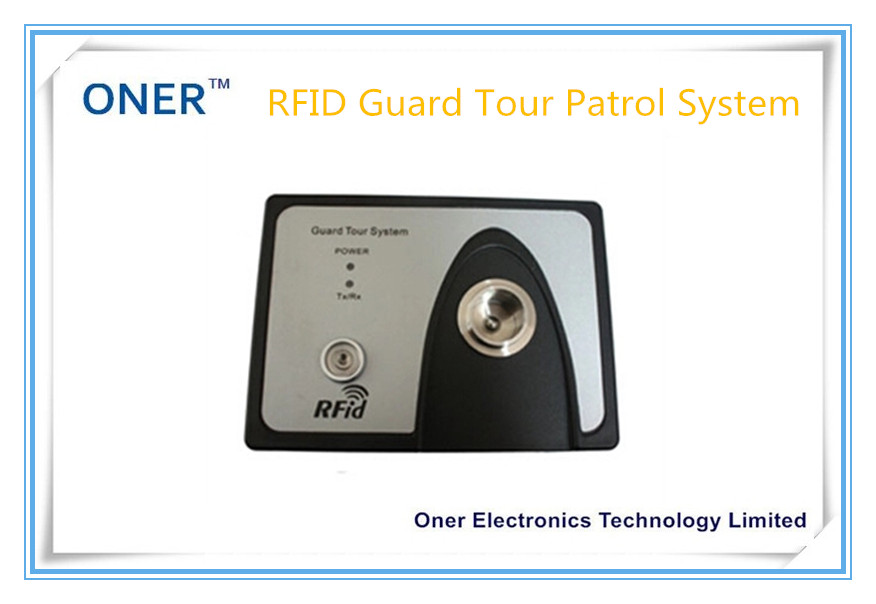

1. Download station (1PCS)
2. Recorder (with carry holster) (1PCS)

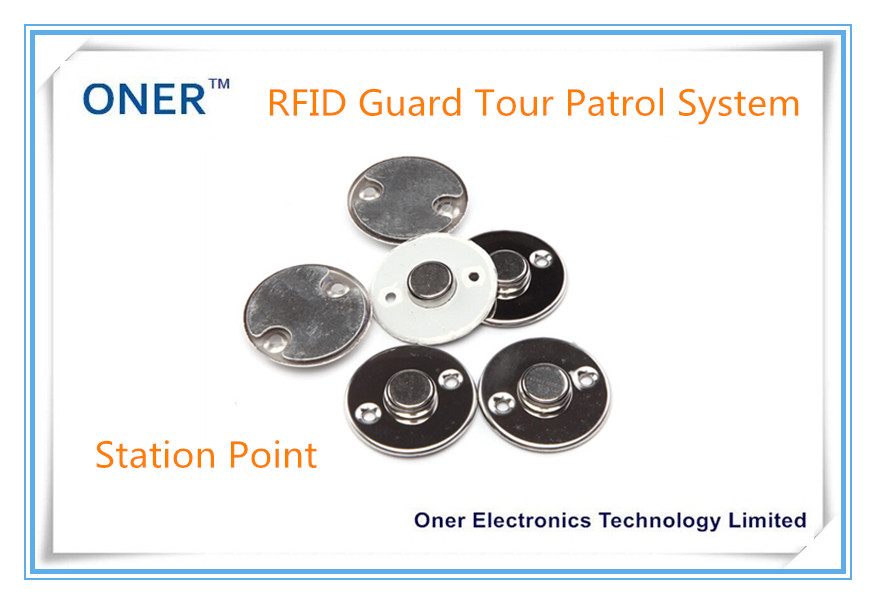

3.Station Point (Quantity can be more than one)

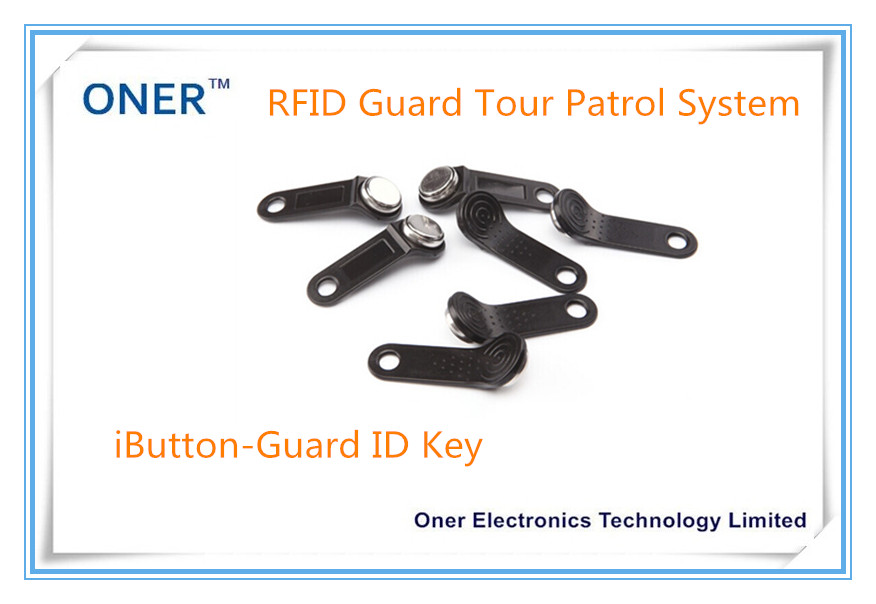

4.iButton-Guard ID tag (Quantity can be more than one)
5. Software and manuals
RFID guard tour system OGT007
OGT007 system is the best guard tour patrol system in today’s market. With its special waterproof pad and solid metal body covered with durable rubber, the reader is fully waterproof and vandal proof. With its extra large memory 60,000 records can be stored before the next download of data. Also with extra long battery life the battery can last more than a month without even charging.
The reader can read information from the tags, and then upload all the patrol records to the management software by connecting the device to USB cable which is attached to a computer, the software can generate many different forms of reports which can demonstrate the guards' patrolling activities and reports can be printed or saved in different format.
You can use up to 500 patrol reader and unlimited number of checkpoints are supported by the software.
What is a Guard Tour System?
A guard tour system is an essential tool which enables to monitor if people assigned to a tour patrol task are completing their duties on time and at their correct locations. In summary the system makes it possible to know where and when the patrols were made.
How does the System Work?
It works by installing a series of RFID Tags (each with its own unique global identification number) along patrol routes and having patrol personnel perform readings on the tags using a hand held reader. The recorded tag numbers along with each associated time stamps are later uploaded via communication adapters to computers for processing and verification. The results are displayed on the screen, printed or emailed so that managers can review at once job performance data of the patrolling personnel (attendance, locations patrolled, timeliness, incidents and etc).
Where can it be Used?
Even though a guard tour system is mostly used and known in the security field it actually can greatly enhance performance in several areas such as:
SECURITY GUARD PATROL - EQUIPMENT MAINTENANCE - JANITORIAL SERVICES - FLEET CONTROL - DELIVERY ROUTES - SALES PERSONNEL ROUTES - ALARM RESPONSE ROUTES - FIRE EXTINGUISHER ROUTES - LAWN SERVICES ROUTES - REPAIR PEOPLE ROUTES - AND MANY, MANY MORE.
