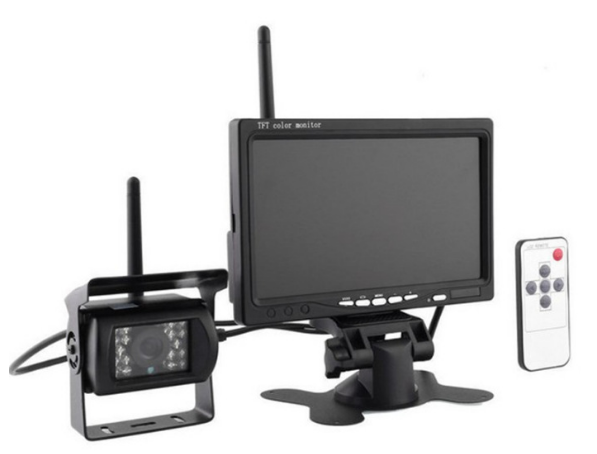

Wireless Reverse Camera Monitor System
Price：
Country of origin:
Specifications Display 2.4GHz analog wireless 7-inch display Video input 1,2,3,4 channels selectable working frequency 2400
- HOME > PRODUCTS > Car Rear View Camera
-
Specifications
Display
2.4GHz analog wireless 7-inch display
Video input
1,2,3,4 channels selectable
working frequency
2400-2483.5 Mhz
Standard:2370MhzTransmission distance
100M
Video decompression method
MPEG 4
Emission frequency
18 dBm
transfer speed
12 Mbps
Spread spectrum
Frequency hopping
Frequency hopping rate
1200/S
screen size
7inch
Types of
16:9 Widescreen
Resolution
800R.G.B x480 dots
System
PAL/NTSC
Operating Voltage
12V/24V DC
Power consumption
≤8.64W
Operating temperature
-10ºC to +65ºC
Audio
Optional
Camera
2.4GHz Digital wireless camera
System
NTSC: 510*492 pixels , PAL: 510*582 pixels
Resolution
420 TVL
Lens
2.5mm
Minimum illumination
0Lux (LED ON)
Infrared light
18pcs
Night vision distance
15 meters
waterproof level
IP67
angle
120°
Operating Voltage
12/24V DC
Operating temperature
-20°C ~ + 70°C
shell material
Aluminum alloy
Scaffolds
iron
Audio
Optional
Wireless Car Rear View system,car camera,Car Rear View Monitor
Model OR612-4AHD

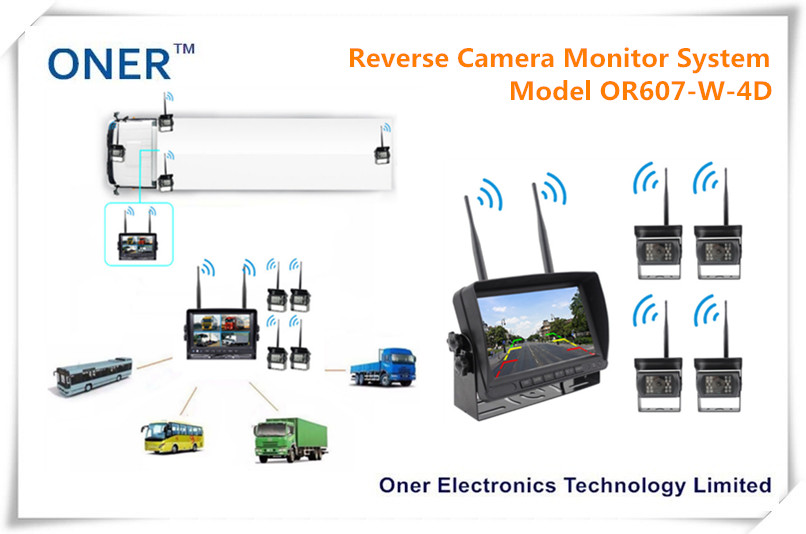

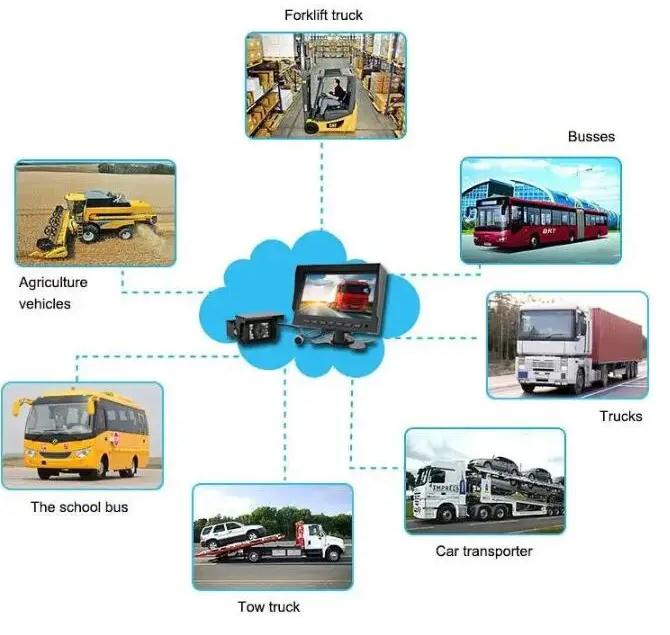

Wide Applications:
Caravan, RV, Trailer, Truck, Travel-Trailer, Farm machine
Upgraded Digital Wireless Signal:
100% no interference, wireless transmitting distance up to 100 meters.
Easy Installation:
80% buyers can compete installation within 50 minutes

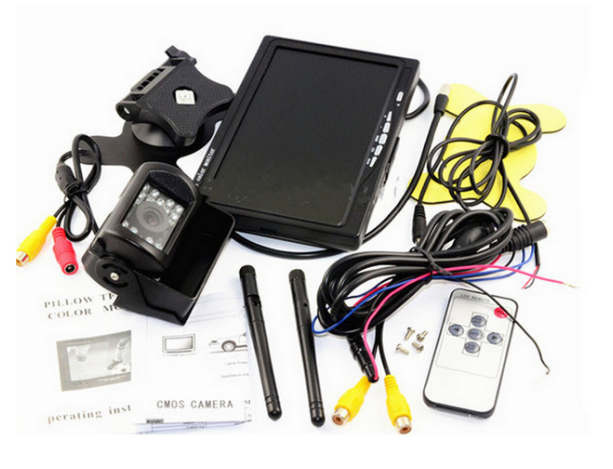

Packing included all installation tool and accessory need
Rugged Camera with IP69 Waterproof & Shockproof:
constructed with tough painted aluminum alloy

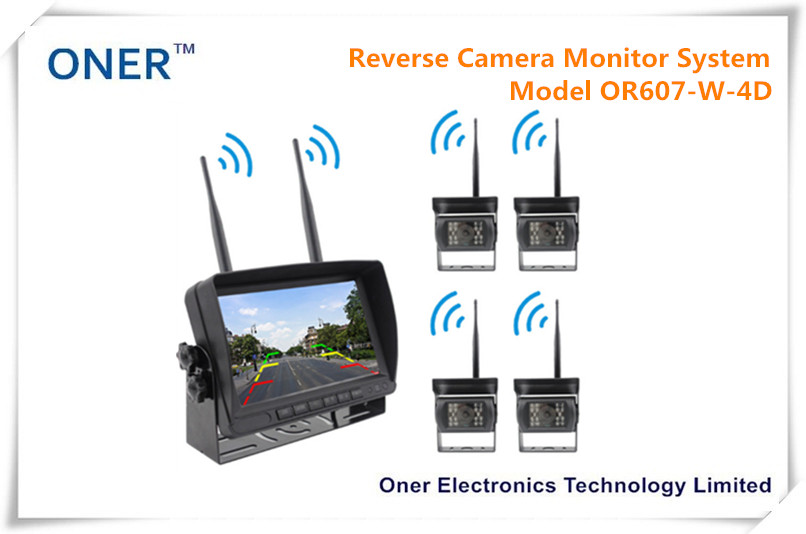

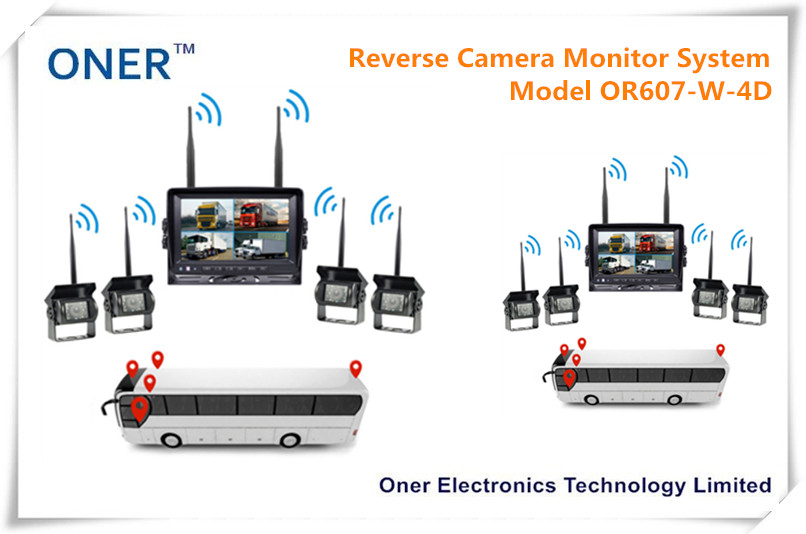

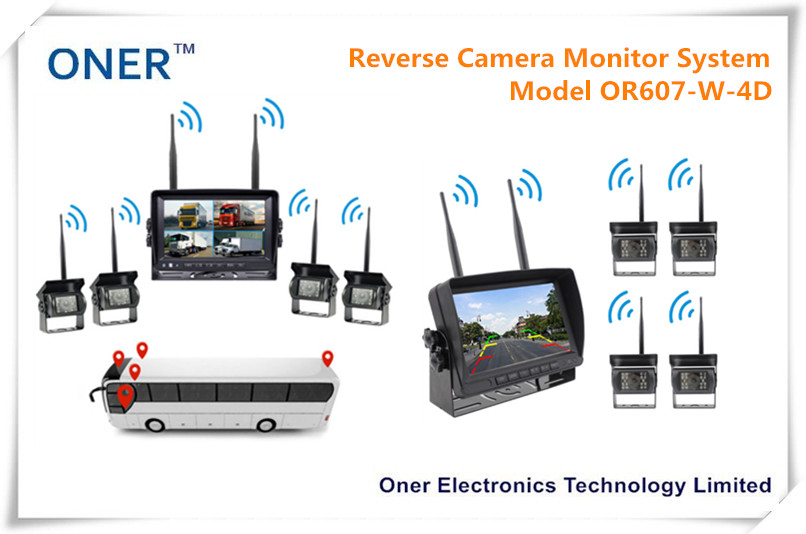

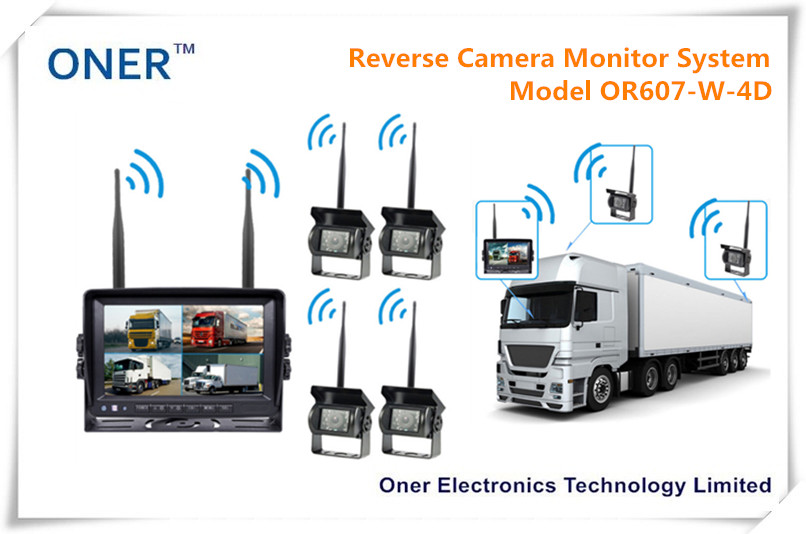

1. 4CH digital wireless monitoring reversing system, with video, four channels are displayed on the monitor at the same time, you can also switch a single screen, automatic pairing, power supply for the monitor and camera, no wireless connection required
2. 2.4G wireless digital signal, wireless receiving distance 100 meters
3, 7-inch high-definition high-brightness digital screen Display pixels: 1024 * 600 Sony HD night vision camera pixels: 800 * 488
4. When reversing, it will trigger automatically, the screen will automatically turn on, four-channel video monitoring, the maximum support 126G SD card

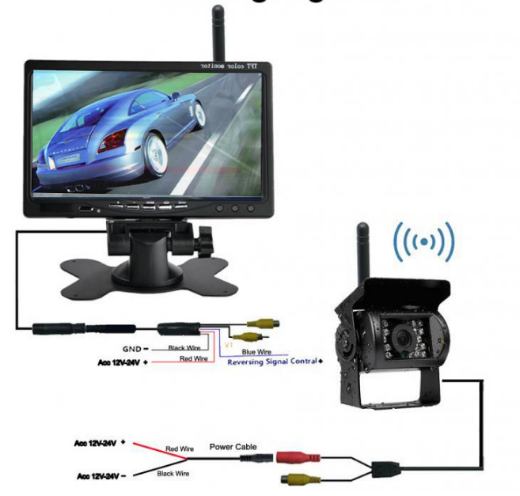

5. Power supply: DC12V / 24V power <7W
6, PAL & NTSC standard automatic conversion
7, wireless transmission distance> 100m, strong anti-interference, more stable, no jamming and no channeling signal, easy and fast installation.
