GPS DIGITAL SPEED Limiter-ModelZGL001

Price:
Country of origin:

GPS Speed Limiter For Vehicles: Model ZGL001 A GPS integrated speed limiter is asingle device that can provide both GPS Tra

HOME  > PRODUCTS > GPS Speed Limiter



Name

GPS Speed Limiter

Working voltage

DC 9V-36V

Backup battery

400mAh 3.7V

Battery working time

4 hours

Working current

60 to 150mA

Standby current

16mA

Charging current

Max 500mA

Input Fuse

2A

Working power

2W

Working temperature

-45 to 85° C

GSM Frequency

850/900/1800/1900 Mhz

Max RF output

33.0dBm±2dBm

Dynamic input range

-15 to -102dBm

GPS chip-set

SiRF III

GPS frequency

L1, 1575.42 MHz

GPS accuracy

5 meters at 2D RMS

Interface

1 A/D Port for fuel monitoring

1 microphone interface

1 speaker interface

1 Pinter Port

1 USB port for configuration via computer

1 USB port for data downloading via USB flash

1 Output for speed limit

1 Output for engine control

1 Input for speed signal

Built in Flash

Store data of last 72hrs, above 5000 points

Built in Buzzer

Sound alarm when speed reaches 95% of set value

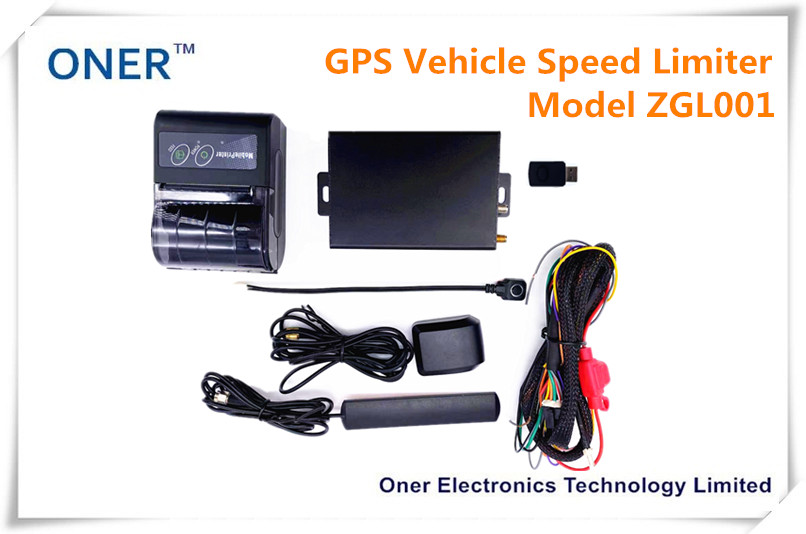

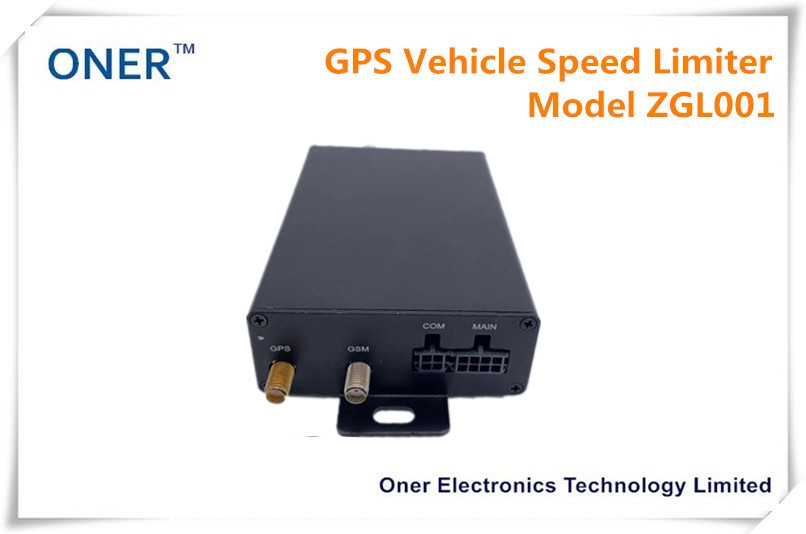

GPS Speed Limiter For Vehicles: Model ZGL001



A GPS integrated speed limiter is a single device that can provide both GPS Tracking and Speed limiting functionalities.



This GPS Vehicle Speed limiter is controlled by microcomputer to realize the effective control of the high speed, to avoid the potential safety risk caused by over speed driving and at the same time to ensure the free action of accelerator pedal within the scope of speed limit.



Main Functions

Real time GPS vehicle tracking

Vehicle speed limitation

Alarm reports:Vibration alarm, speeding alarm,external power off alarm, geo-fence alarm,low power alarm.

Speed report via printer/USB disk/GPS platform

Free GPS platform service (With APP for IOS and android)







BENEFITS







1. Over speeding quick fix for good – the most common and widely spread speeding problem is resolved at once and for all with a minimum effort and maximum results.



2. Extensive functionality to serve your needs – highly advanced, configurable and efficient speed limiting solution. The rich set of features can be utilised in a combination with speed limiter functionality making it a truly comprehensive all-in-one solution for any fleet.



3. Improves drivers’ discipline and time efficiency – great assistance for novice drivers and seasoned professionals helping to stay safe and perform daily tasks with the least waste of time.



4. Lower expenses, higher profits – by preventing traffic accidents, speed tickets, delays, casualties, and insurance cost rise, this tracker very likely will improve fleet operational cost, company cash flow, and ROI.



5. Various fleets, one solution – suitable for all sorts of fleets and logistic businesses including freight forwarders, carriers, international and domestic couriers, 3rd party logistic service providers, livestock transportation, luxury and executive class fleets, etc.
