Wo r king Voltage DC 9 V - 9 5V Working Current 12 V/ average 35mA Sleeping Current 12 V/ less than 10mA Backup Battery 14
Working Voltage |
DC 9V - 95V |
Working Current |
12V/ average 35mA |
Sleeping Current |
12V/less than 10mA |
Backup Battery |
140 mAh (3.7V) |
Working Temperature |
-20°C - 75°C |
Storage Temperature |
-30°C - 80°C |
Working Humidity |
10%-85% RH |
GSM frequency |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHZ |
SIM Card |
Micro SIM card |
GSM Antenna |
internal |
GPS Chip |
SIMCOM |
Satellite |
Beidou+GPS |
Cold Start time |
Average 32sec |
Warm Start time |
Average 1sec |
Tracking Sensitive |
-162 dBm |
Capture Sensitive |
-148 dBm |
GPS Antenna |
Internal |
Antenna |
25mm * 25mm * 4mm |
GPS Frequency Ban |
L1: 1575.42±1.023MHz |
Beidou Frequency Band |
B1: 1561.098±2.046MHz |
Satellite numbers |
50 |
GPS Accuracy |
<10m(1σ) |
GPS Accuracy |
<30ns(1σ) |
Speed measurement accuracy |
<0.1m/s(1σ) |
Max acceleration |
4g |
Max speed |
515m/s |
Max Elevation |
18000m |
Fuel/Engine control |
Can connect to external relay |
Microphone |
1 MIC (optional) |
ACC detection |
1 ACC |
SOS |
1 SOS (optional) |
Dimension |
76mm(L)* 35mm(W)* 15mm(H) |
Housing Material |
ABS Plastic |
Weight |
50g |

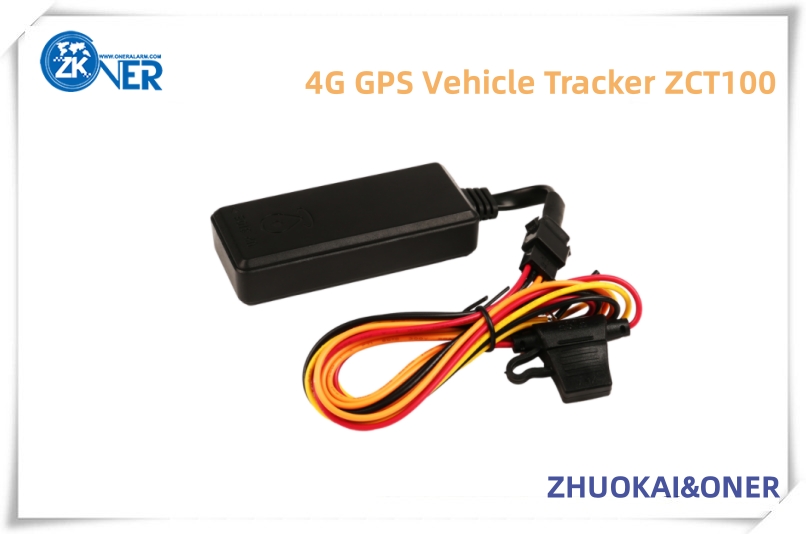

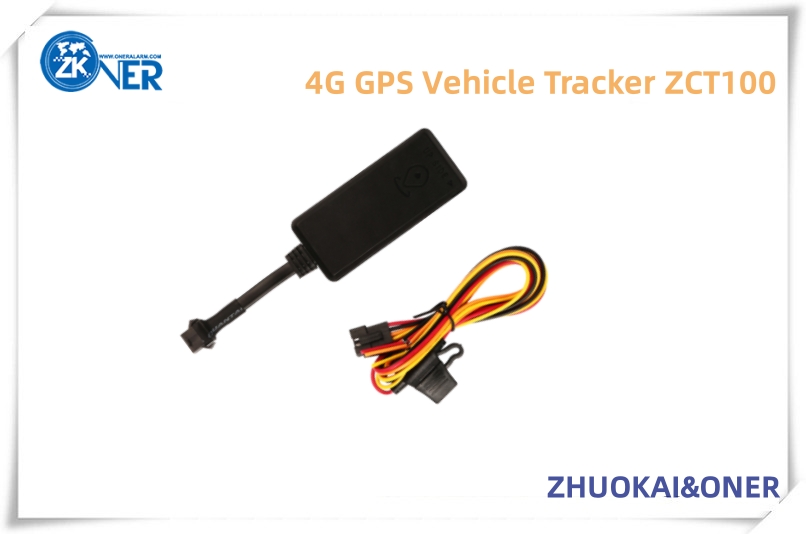

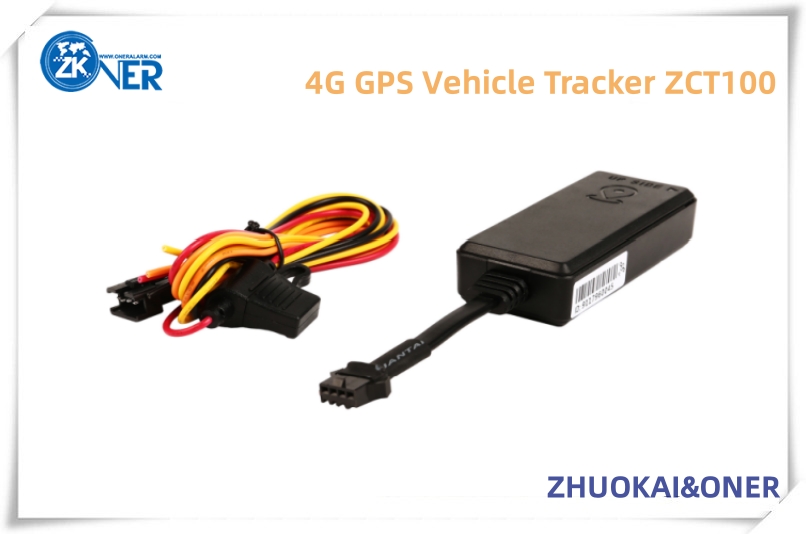

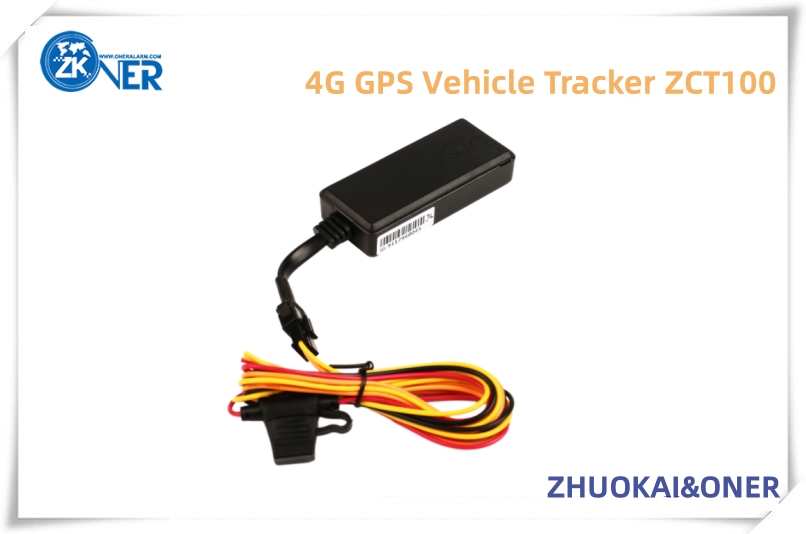

4G GPS Vehicle Tracker
1. Wide operating input voltage range: 9-75VDC
2. GPS/LBS real time positioning, support the computer to track the car, mobile search vehicles
3. Support SMS text query location information
4. ACC ignition signal detection
5. Built-in vibration sensor to achieve intelligent anti-theft function
6. SOS panic button for emergency alarm
7. Internal / external microphone for remote voice monitoring
8. Movement alarm
9. External power cut alarm
10. Remote engine start/stop
11. With flash memory; Support data stores in the memory in memory and re upload to server after the GPRS signal is detected
12. Map Link Available on SMS Query
13. Weather-Proof IP65 design
