4-Channels AI intelligent 4G GPS Dash Camera R09-Oner GPS tracker | fleet management

4-Channels AI intelligent 4G GPS Dash Camera R09

Price：
Country of origin:

I TEM Technical Specifications CPU Dual-Core processor@1.5GHz ,Total coding resources 1080p* 60 fps NPU@1.0TOPS neural netw

HOME > PRODUCTS > 4G GPS Dash Camera

Product parameters
Function description

ITEM	Technical Specifications
CPU	Dual-Core processor@1.5GHz,Total coding resources 1080p*60fps NPU@1.0TOPS neural network acceleration engine
Memory	2Gb DDR3
Video Input	Active Pixels: 1920×1080,1080×720, H.264&H.265 format
	Front camera:1080P, Rear camera: 720P 2-channel expansion: AHD 720P@25fps
Configuration	Support mobile APP preview and setting
Audio input / output	Built-in MIC and speaker, G.711a format
Video recording resolution	1-ch 1080p*25fps+3-ch 720P@25fps,Simultaneous recording of sound and video.
G-Sensor	Built-in 3-axis acceleration
External interface	1-ch RS232, reserved for communication with peripherals
Alarm Input/output	2-ch sensor input/1-ch output
Positioning module	GPS / Beidou Positioning Module
4G	built-in 4G module,TDD-LTE, FDD-LTE
WIFI	Optional support, 2.4G, 802.11b/g/n, AP mode
Storage	Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB
USB	Micro USB, support usb wifi dongle
Upgrade	TF card and OTA
AI - ADAS	Lane departure, collision alarm, Distance detection, pedestrian detection etc
AI - DSM	Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection
AI - BSD	Blind area detection
Input voltage	DC:+10V ～ +36V
Power consumption	Normal working state ＜ 5W (without external equipment)
Power off protection	Super capacitor design, support abnormal power failure, ensure the integrity of video files
Working Temperature	-25℃ to +70℃
Working relative temperature	20% to 80%
Communication protocol	JT/T808-2011，JT/T808-2019，CMSV6

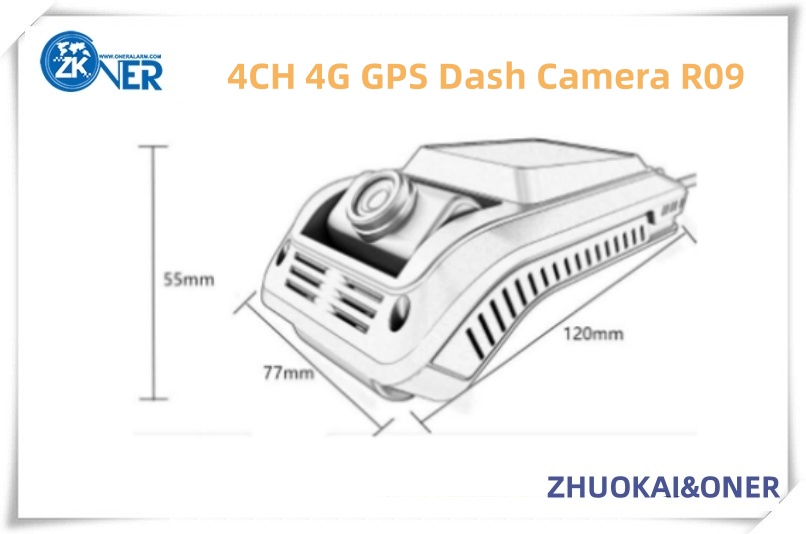

Equipment size	120mm77mm55mm
Net weight	240g

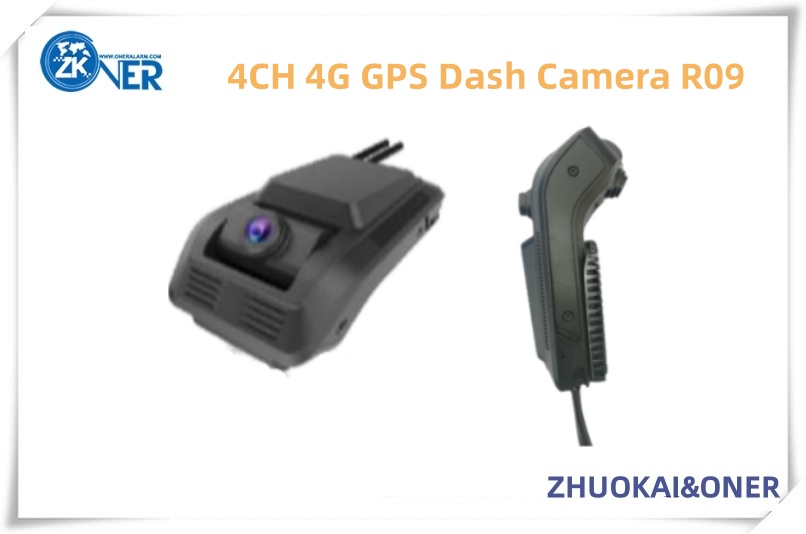

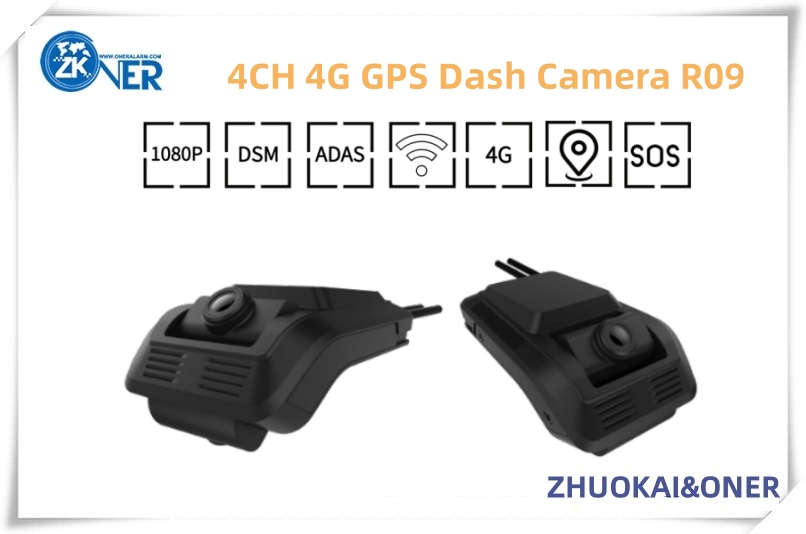

4-Channels AI intelligent 4G GPS Dash Camera R09

1.Real time GPS tracking and streaming video;

2.History playback for location and video;

3.Built-in front and rear dual-channel cameras, integrated design, easy to install;

4. Front camera 1080P resolution, rear camera in the car 720P resolution;

5. Single TF card, up to 512GB;

6. Two-way voice intercom between device and platform;

7. Alarm reports;

8. With SOS button for emergency alarm;

9. Built in AI intelligent algorithm,dash camera has the functions of DMS, ADAS and BSD,user can choose 2 of these via AI configuration);

10. Support up to 2 external 720P AHD cameras (optional);
